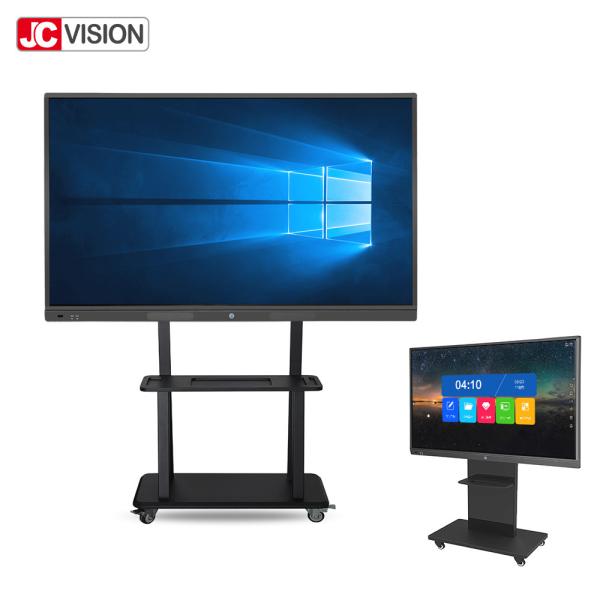

RS232 USB2.0 Interactive Flat Panel Display 450nits For School

Brand Name : JCVISION

Model Number : JC-T75K

Certification : CE, FCC, RoHS

Place of Origin : Guangdong ,China

MOQ : 1

Price : Price Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton and wooden box

Cpu : i3/i5/i7 optional

Warranty : 1 Year

Material : Aluminum Alloy Frame

Viewing angle : 178°(H) / 178°(V)

Function : projector,writingboard,PC,TV

Interface : USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI

Contact Now

Touch Screen Smart Board is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…

Specification

LCD Panel
Size
55 inch/ 65 inch / 75 inch / 85 inch / 98 inch Available
Panel Brand
LG,BOE,AU (gauge A screen)
type
TFT-LCD S-PVA
Resolution
3840 × 2160 (UHD) @60hz
Brightness
450cd/m²
Ratio contrast
2000:1
Visual Angle (horizontal/vertical)
178°/178°
Response time
8ms
Visual area(mm)
1649.7(W)×928(H) mm
Color gamut (NTSC)
72%
Backlight
WLED
display scale
16:9
Response time
＜8ms
Life
>60000H
Infrared touch characteristic
Touch the specifications
Infrared touch frame
glass
4mm tempered glass
Glass transmittance
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Object induction number (IR)
Touch at 20
Number of infrared induction lines (W D)
32767 × 32767
Positional accuracy
More than 90% of the touch area is 2mm
The interface definition
USB 2.0(Full speed)
Touch the strength
Zero pressure touch
The light resistance
It has light resistance
Induction life
6 million times
The response time
＜8ms
The power supply mode
Full duplex usb-powered DC +5V up to 500mA
Switching power supply
Power consumption (typical value)
AC100-240V~(+/-10%),50/60Hz
Standby power consumption
270W
The power interface
1W
Switching power supply
European standard 220V two - phase three - wire system
Mechanical specification parameters
The net weight
52kg
Gross weight
63kg
Bare machine outline size (W x D x H)
1715.8×1024.1×96.8mm
Package size (W x D x H)
1813×1126×190mm
Shell material (face frame/back shell)
Plastic/Sheet metal
Shell color (face frame/back shell)
black
To protect the glass
4mm toughened glass/level 7 earthquake resistant
Type of installation
Supports/wall hangers
The cooling way
Temperature-controlled fan dissipates heat
The environment
Working temperature
0℃~50℃
Working humidity
20%~80%(No condensation)
Storage temperature
-20℃~60℃
Store humidity
10%~90%(No condensation)
Display mode
S-ips, often black display, transmission
Maximum service time (hours/day)
24 hours
Features
The speaker
2×8Ω/5W(built in)
Support for input mode
Stylus writes keyboard
The attachment
The user manual
Manual, warranty card, certificate of conformity
cable
The power cord
Others (optional accessories)
Remote control, base/bracket, WiFi


RS232 USB2.0 Interactive Flat Panel Display 450nits For School
